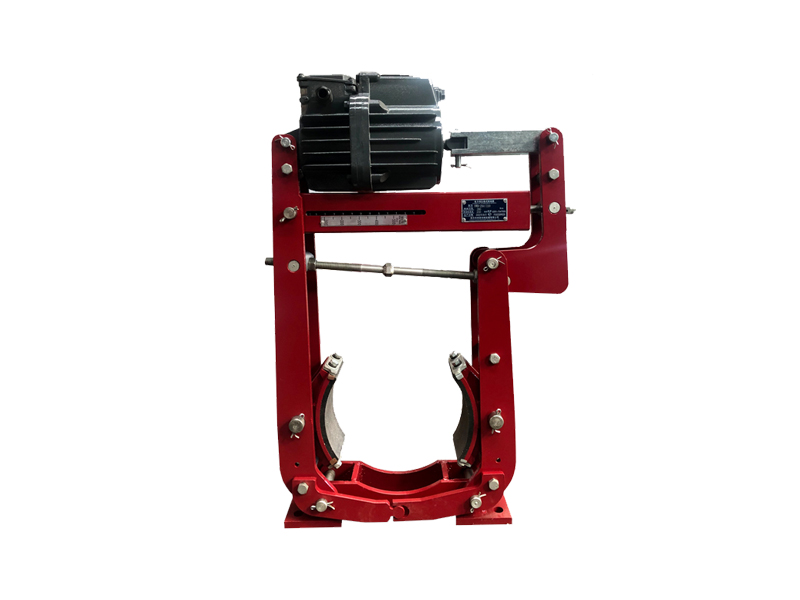

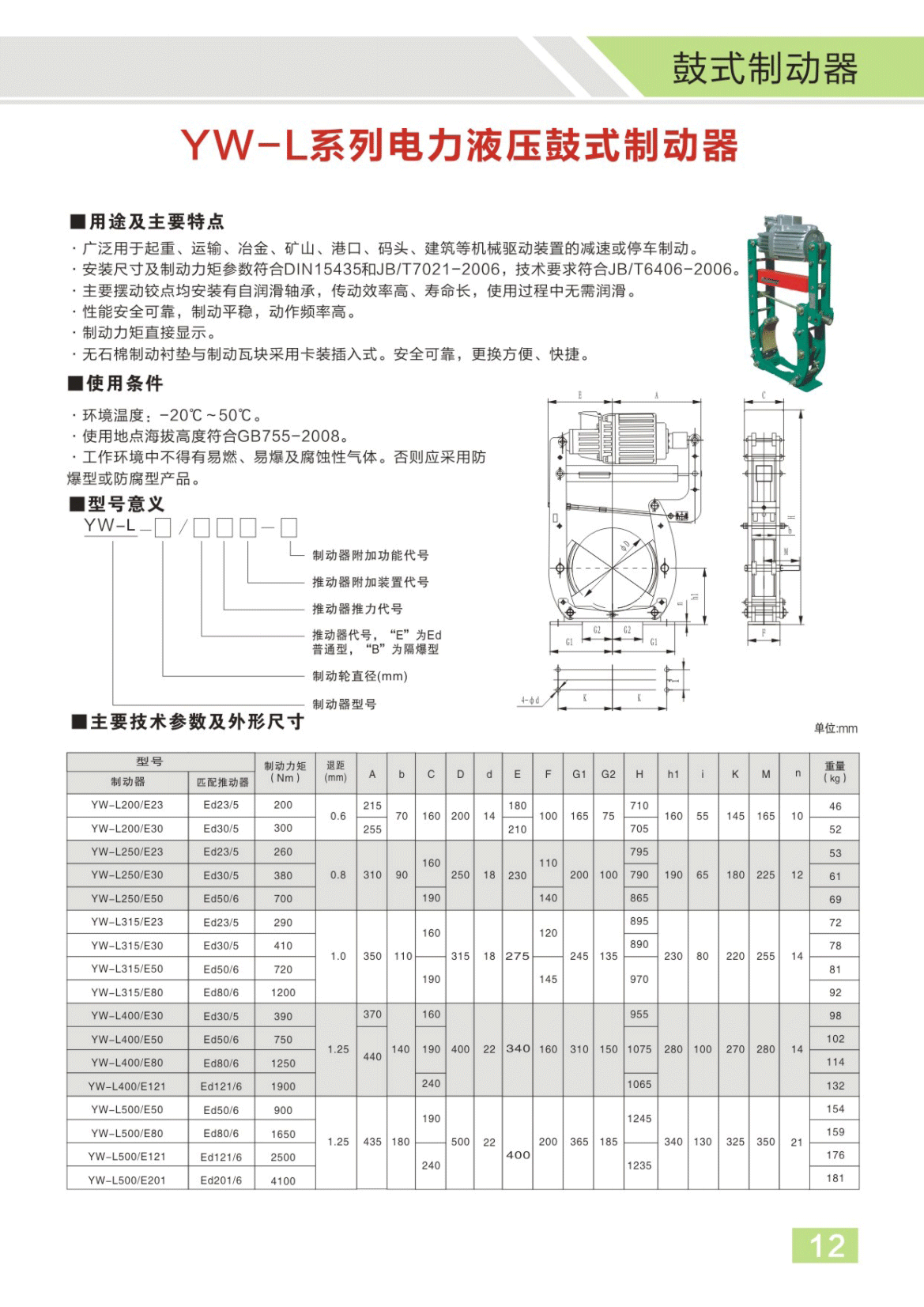

Purpose and main features
·Widely used for deceleration or parking braking of mechanical driving devices in lifting, transportation, metallurgy, mining, ports, docks, construction, and other fields.
·The installation dimensions and braking torque parameters comply with D1N15435 and JB/T7021-2006, and the technical requirements comply with JB/T6406-2006.
·The main swing hinge points are equipped with self-lubricating bearings, which have high transmission efficiency and long service life, and do not require lubrication during use.
·Safe and reliable performance, smooth braking, and high action frequency.
·The braking torque is displayed directly.
·Asbestos free brake pads and brake pads are card mounted and inserted. Safe and reliable, easy and fast to replace.
Usage conditions
·Environmental temperature: -20 ℃~50 ℃.
·The altitude of the use site complies with GB755-2008.
·There should be no flammable, explosive, or corrosive gases in the working environment. Otherwise, explosion-proof or anti-corrosion products should be used.
